CT River Bridge US Route 18
Project Introduction
Route 18, crossing the Connecticut River, a 5-span bridge between New Hampshire and Vermont, was being evaluated by NHDOT’s engineering consultant. The superstructure was being replaced, but the possibility of preserving the concrete substructure was unknown—the internal condition of four concrete bridge piers and two abutments needed to be quantified. The challenge is whether shallow surface repairs can extend the substructure’s service life or if removal and replacement of the substructure is required. NDT Division was contracted to perform various nondestructive test methods to determine the condition and durability of the substructure to assist the engineering team with their evaluation of the bridge.
Project Scope

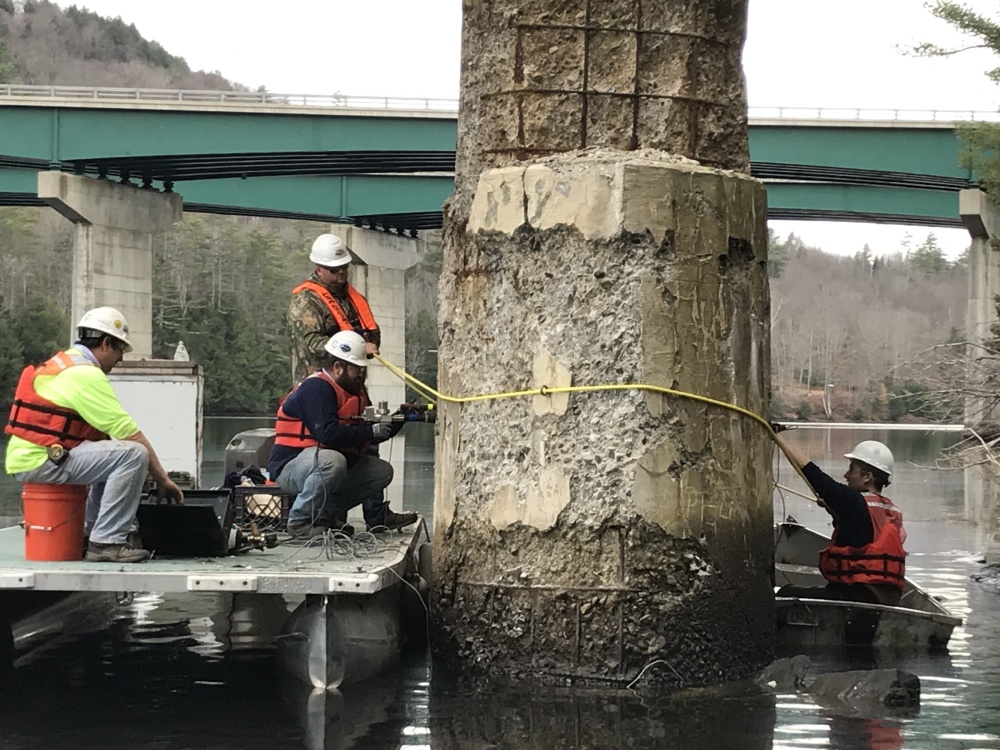

NDT Division used nondestructive impact echo/pulse velocity (IE/PV) at the concrete surface and through testing to determine concrete strength by measuring the velocity of compressional and shear waves propagating through the concrete. Ground penetrating radar (GPR) and corrosion potential measurements were also collected to determine the cover depth and risk for corrosion of the steel reinforcement in the piers. These measurements helped quantify the concrete deterioration's depth, severity, and extent.
Project Results
The multiple non-destructive testing approaches conducted by NDT Corp. provided the engineering team with details of the extent of deterioration of the concrete, including risk for corrosion, delaminations, and the in-situ compressive strength. Surface and through testing measurements confirmed that the substructure's internal concrete condition was adequate to preserve the piers, requiring only external superficial repairs. The work conducted by NDT Corp. ultimately reduced the cost of the rehabilitation project, saving the owner millions of dollars by reusing the existing concrete pier foundations and reducing the construction schedule by well over six months.
